The 8 Series Sampling Oscilloscope provides a comprehensive optical test solution for telecom and datacom applications, as well as general purpose optical component testing. The TSO8C17 and TSO8C18 optical modules provide > 30 GHz optical bandwidth, plus fully integrated Optical Reference Receivers (ORR)1 enabling both single mode and multi-mode conformance testing at 850 nm, 1310 nm, and 1550 nm bands.
Key performance specifications
- Optical bandwidth above 30 GHz
- Single mode and multi-mode support for short and long wavelength optical testing
- Optical Reference Receiver (ORR)Optical Reference Receiver (ORR) is a 4th order Bessel-Thomson filter with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results support for standard compliance testing
Applications
- Design/verification of High-Speed Components and Systems
- Signal integrity analysis
- Compliance test for industry PAM4 standards: 50G, 100G, 200G, 400G IEEE 802.3TM standanrd such as 400GBASE-FR8, 400GBASEDR4, and similar optical direct detect standards.
Key features
-
New system architecture
- Disaggregated: Separation of the acquisition hardware and software analysis allows the data to be streamed over Ethernet to a connected PC. Users have the capability to scale their analysis platforms to their needs and can connect from anywhere on the network
- Configurable: The TSO820 mainframe supports user-swappable current and future optical modules
-
Optical modules
- Accurate testing and characterization of short or long wave optical signals using the high sensitivity and low noise performance of the TSO8C17 or TSO8C18 modules
- Optical reference receivers (ORR)1 supports specified requirements for standards-mandated compliance testing
- Extinction ratio measurements with built-in variable ER correction to ensure accuracy and repeatability
-
Analysis with TSOVu?

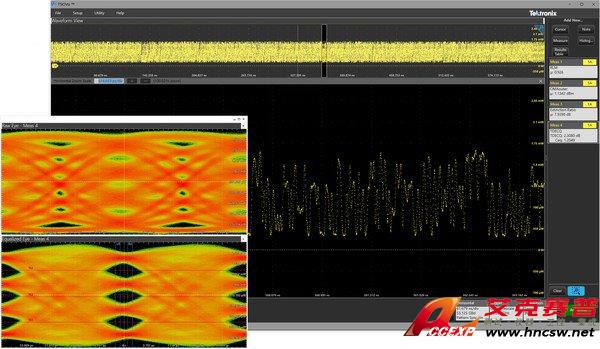

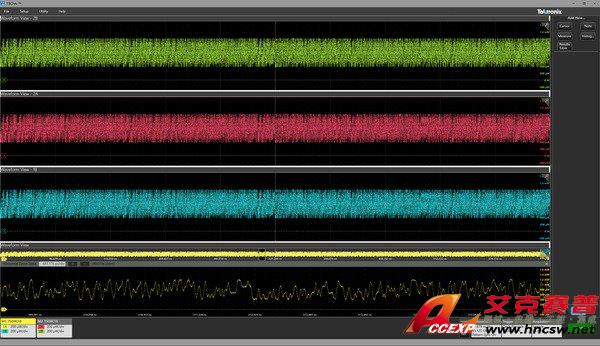

- TSOVu: A new software platform that runs independent of the oscilloscope mainframe on users’ computers or server for both live and post-processing of acquired data

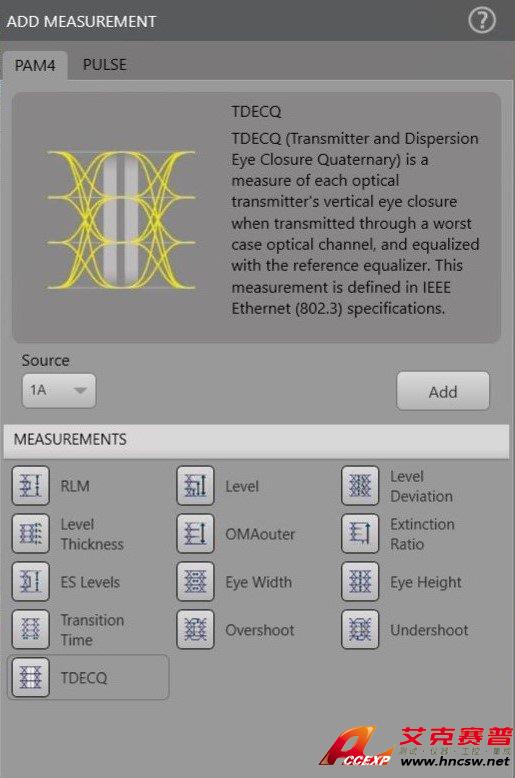

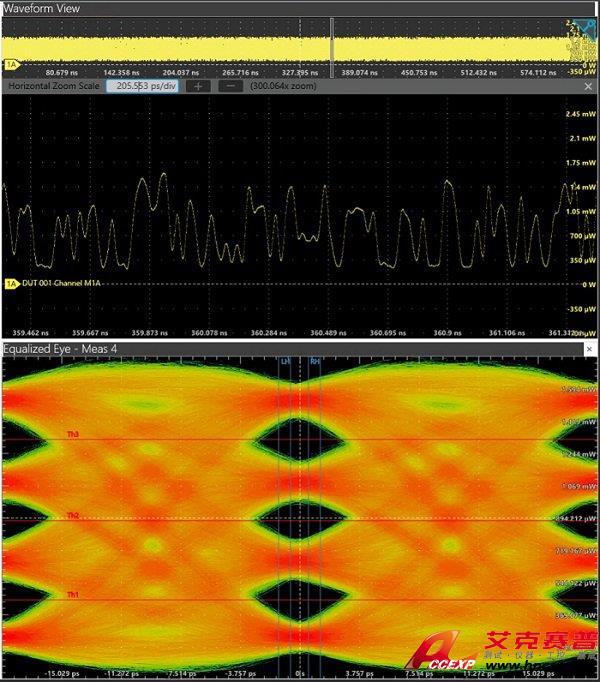

- TSOVu offers comprehensive analysis of PAM4 optical signals. Includes support for eye diagrams, optical measurements such as TDECQ, and other standard measurements
- Measurement plug-in designed to interface with the base software that can be dynamically installed as needed
-
High test throughput
- Simultaneous capture of all channels at a high sample acquisition rate of 300 kS/s
- Sophisticated Programmatic Interface (PI) for automation environments enables the highest test throughput. Each command supports full data synchronization, eliminating the need for wait / sleep statements
Compliance testing
Compliance test for 50G, 100G, 200G, and 400G IEEE 802.3TM standards such as 400GBASE-FR8, 400GBASE-DR4, and similar optical direct detect standards. The TSO820 Sampling Oscilloscope is also designed to support high speed NRZ standards such as 100 Gb Ethernet (100GBASE-LR4 or similar) that operates at a rate of 25.78125 Gb/s. Stay up-to-date on the latest standards changes by updating or adding new measurement plug-ins as they are released.
Disaggregated architecture

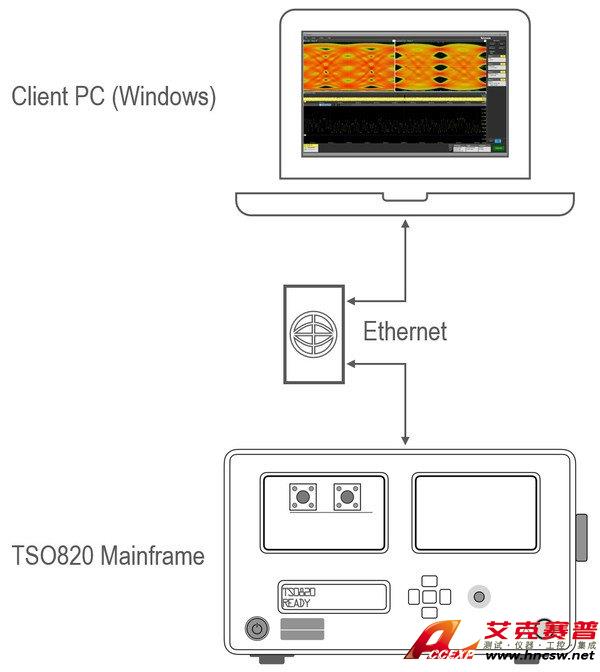

Traditional oscilloscopes perform measurements on-device with the specific processor that the instrument was shipped with. However, that processor becomes obsolete over time, and makes speed upgrades to the analysis platform impossible. The 8 Series Sampling Oscilloscope turns this notion upside-down and features a disaggregated architecture, which means that the acquisition hardware and analysis platform have been separated. Since TSOVu can be installed on any Windows 10 machine, users now have the freedom to choose the laptop readily available in the lab, a server connected to the network, or anything in between.
Flexibility by design

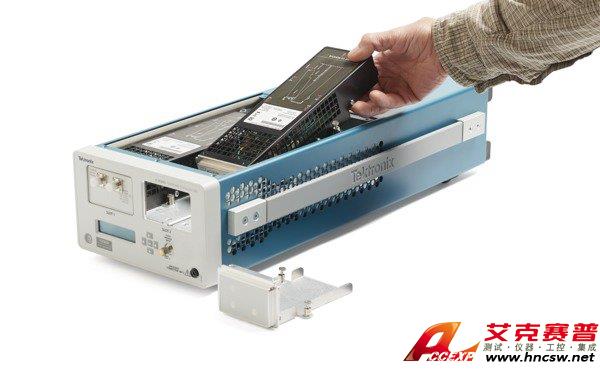

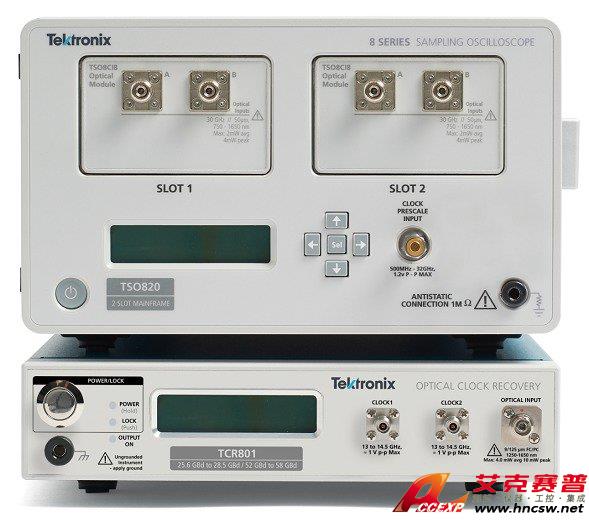

The 8 Series Sampling Oscilloscope has been designed with modularity in mind. The TSO820 mainframe features the two module slots that are compatible with TSO8C17 and TSO8C18 optical modules, as well as future other modules. The oscilloscope mainframe can be reconfigured on the spot by removing or inserting modules through the top of the instrument. As testing requirements evolve, scale or change capabilities to match current testing needs without sending the instrument in for factory reconfiguration.

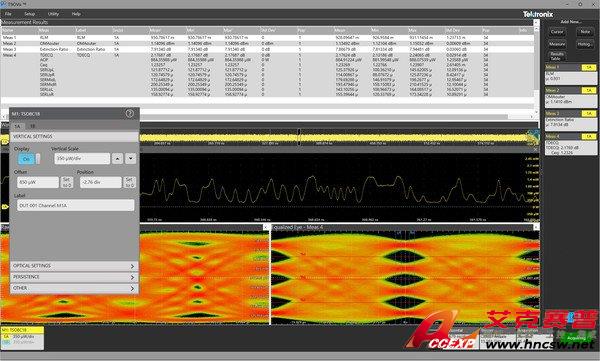

When connecting to the TSO820 using TSOVu, any changes to the hardware configuration will be reflected by the user interface . The module type, serial number, calibration information, and so on are accessed via TSOVu or PI queries.
For more information regarding the TCR801, refer TCR801 Optical Clock Recovery Datasheet on https://www.tek.com/

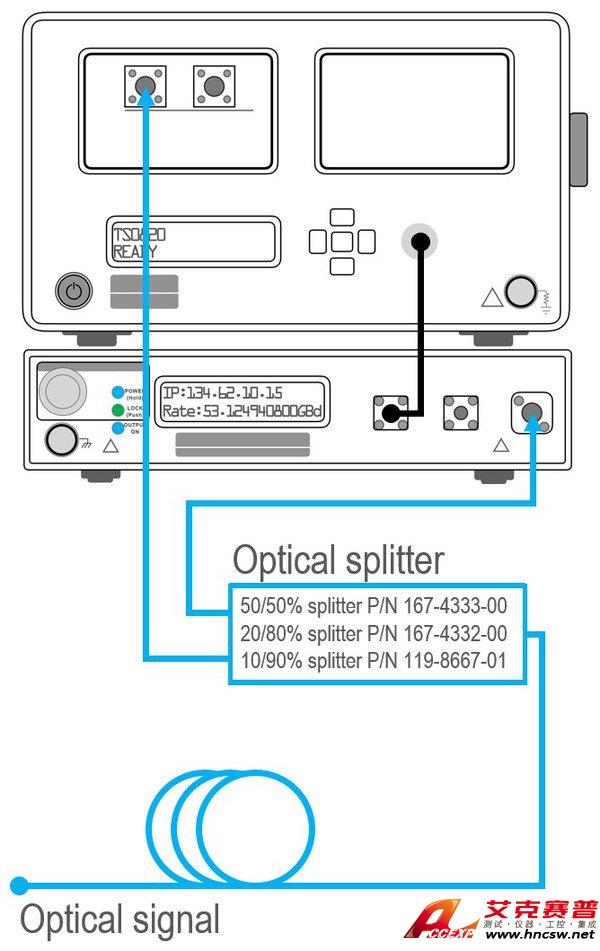

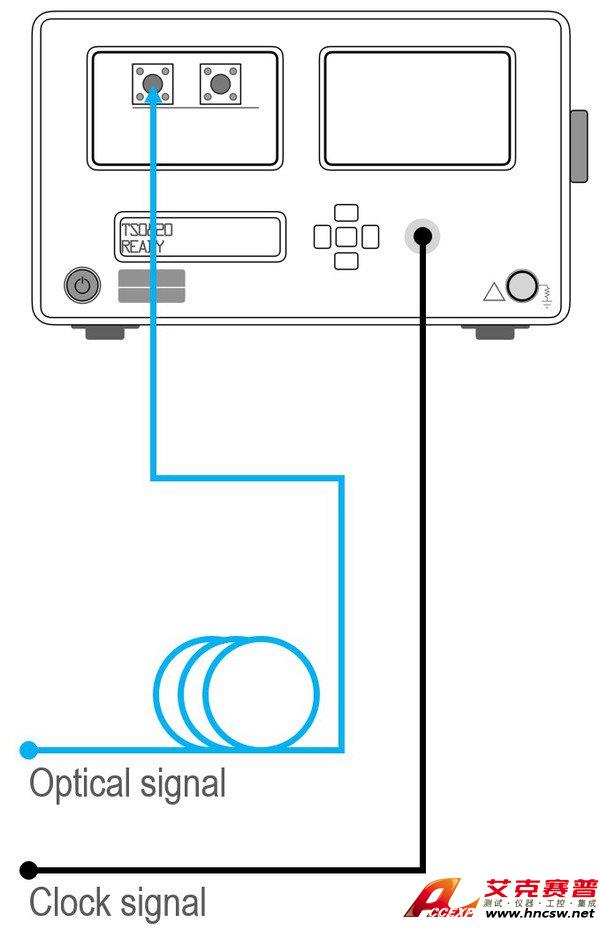

Connection diagrams
